Compact Industrial Computer

WS-200X (Advantix - powered by Fastwel)

WS-200X (Advantix - powered by Fastwel) Compact Industrial Computer

•    CPU: Broadcom BCM2711, 4x cores Cortex-A72 (ARM v8) 64-bit SoC @ 1.5 GHz, GPU -Videocore VI (500 MHz, 2160p);
•    RAM: 1GB, 2GB or 4GB LPDDR4
(depending on the model);
•    GPIO: standard 40-pin GPIO header;
•    Power supply: 5V, 3A via USB-C connector;
•    Operating temperature range: from -40°C to +60ºC;
•    Cooling: conduction, no fans;
•    OS compatibility: Raspbian (Linux);

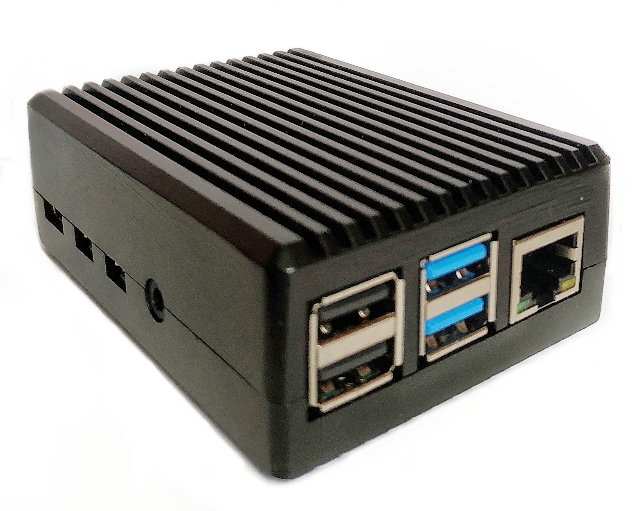

WS-200X (Advantix – Powered by Fastwel) is a high-performance industrial computer, based on the Broadcom BCM2711 4x cores Cortex-A72 (ARM v8) 64-bit SoC, which is characterized by compact size, cost-efficiency and low power consumption and designed for operation in a wide temperature range.
Datasheet (PDF 0.95 MB)
Manuals:
  • WS-2001

    Compact Industrial Computer WS-2001/ Cortex-A72 1.5GHz/ 1GB LPDDR4, OS: Raspbian (Linux);

  • WS-2002

    Compact Industrial Computer WS-2002/ Cortex-A72 1.5GHz/ 2GB LPDDR4, OS: Raspbian (Linux);

  • WS-2004

    Compact Industrial Computer WS-2004/ Cortex-A72 1.5GHz/ 4GB LPDDR4, OS: Raspbian (Linux);
