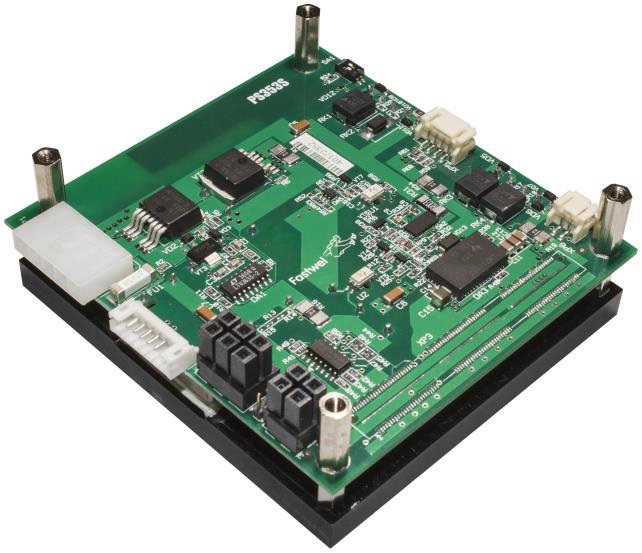

Power Supply Module
PS353
- StackPC-FPE form-factor
- Input voltage range 9–36 V
- Output voltage +3,3; +5; +12; +5 STDBY
- Maximum output power 100 W
- Galvanic isolation input/output 1500 V
- Input protection against surge voltage,
- short circuit and overheating
Overview
Downloads
Order Info
Sales & technical support
Power Supply Module PS353 is designed for the use in highly reliable self-sustained modular computing systems based on StackPC or PC/104 standards with low power consumption.
The Module is a galvanically isolated power supply source with the range of input voltages from 9 to 36 V DC and output voltages 12, 5, 3.3 V DC, with the functions of activation/deactivation and monitoring of technical condition.
The Module is a galvanically isolated power supply source with the range of input voltages from 9 to 36 V DC and output voltages 12, 5, 3.3 V DC, with the functions of activation/deactivation and monitoring of technical condition.
Datasheet
(PDF 0.63 MB)
PS353-01 |
Standard version; |
PS353-01\Coated |
Version with conformal coating. |
