CPC501 6U CompactPCI Pentium® M SBC (EOL)

•    Intel® Pentium® M processor up to 1.8 GHz
•    Two Gigabit and one Fast Ethernet ports
•    PICMG 2.16 and PICMG2.1 compliant
•    Integrated VGA graphics
•    Onboard PMC or 2.5" HDD
•    Flash disk soldered onboard
•    System and peripheral slot compliance
•    Wide range of mezzanine and rear I/O modules
•    Operating temperature:
•    0°C to +70°C - commercial
•    -40°C to +85°C - industrial

Overview Downloads Order Info Sales & technical support

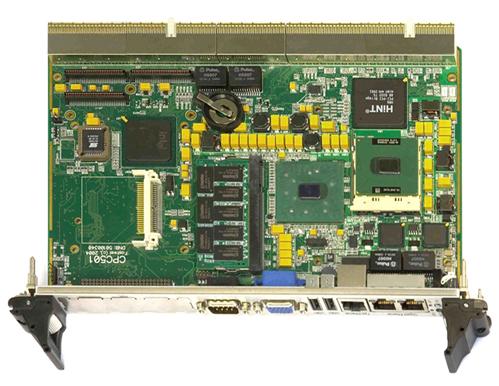

CPC501 is a high performance 6U CompactPCI CPU card designed for various applications such as telecom, factory automation, transportation, aerospace.

The board is based on Intel® Pentium® M processor up to 1.8 GHz and supports up to 1Gb of DDR SDRAM with ECC.

Intel 855GME/ICH4 chipset incorporates a lot of functions, lowering cost and providing high reliability.

CPC501 has 2 Gigabit Ethernet ports, which can be flexibly configured for front or rear panel, or PICMG 2.16 backplane and one Fast Ethernet port.

The board is fully compatible with PICMG 2.16 specification, thus providing capability to build robust redundant systems.

Hot swap support, hardware monitor and watchdog timer makes CPC501 suitable for mission critical applications.

32 MB solid-state disk is soldered onboard, thus providing non-volatile storage for system configurations without removable disks.

CPC501 can be ordered with PMC support (CPC501-01) or with 2.5" HDD direct mounting feature (CPC501-02).

There are RS-485 COM-ports for connection to remote equipment.

The board is produced in two versions – for industrial temperature range (-40°C to +85°C) and for commercial temperature range (0°C to +70°C).
Datasheet (PDF 4.49 MB)

  • CPC501-01-P1.4-C-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.4 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. place for 2.5" HDD. 0..70'C

  • CPC501-01-P1.4-I-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.4 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. place for 2.5" HDD. -40..85'C

  • CPC501-01-P1.6-C-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.6 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. PMC. 0..70'C

  • CPC501-01-P1.6-I-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.6 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. place for 2.5" HDD. -40..85'C

  • CPC501-01-P1.8-C-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.8 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. place for 2.5" HDD. 0..70'C

  • CPC501-01-P1.8-I-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.8 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. place for 2.5" HDD. -40..85'C

  • CPC501-02-P1.4-C-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.4 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. PMC. 0..70'C

  • CPC501-02-P1.4-I-A1

    CompactPCI CPU card 6U/4HP. Pentium M 1.4 GHz. up to 1GB DDR SDRAM. 2xGigabit Ethernet. 1xFast Ethernet. QXGA. LVDS TFT. 32 MB FFD. 2xUATA/100. 5xUSB. 4xCOM. PMC. -40..85'C

  • F-SODIMM-DDR-1024-C

    1024 MB SDRAM DDR (SODIMM) 0..70'C

  • F-SODIMM-DDR-512-C

    512MB SDRAM DDR (SODIMM) 0..70'C

  • F-SODIMM-DDR-512-I

    512MB SDRAM DDR (SODIMM) -40..+85'C

  • F-SODIMM-DDR-ECC-1024-C

    1024 MB SDRAM DDR ECC (SODIMM) 0..70'C

  • RIO58101-C

    6U 4HP Rear I/O board for CPC501: 2xGigabit Ethernet,VGA, LVDS, 4xCOM, 2xUSB, PS/2, reset, LPT, FDD, EIDE, RTC battery 0..70'C

  • RIO58101-I

    6U 4HP Rear I/O board for CPC501: 2xGigabit Ethernet,VGA, LVDS, 4xCOM, 2xUSB, PS/2, reset, LPT, FDD, EIDE, RTC battery -40..+85'C

  • RIO58102-C

    6U/4HP Rear I/O module for CPС501-0x: 2x Fast Ethernet ports are available at the front panel of the CPC501. VGA. LVDS. 4xCOM. 2xUSB. PS/2. reset. button. LPT. IPMI. FDD. EIDE. RTC battery.0..70'C

  • RIO58501-C

    6U 4HP Rear I/O board for CPC501: 2xGigabit Ethernet,VGA, AUDIO, 4xCOM, 2xUSB, PS/2, reset, LPT, FDD, EIDE, RTC battery 0..70'C

  • RIO58501-I

    6U 4HP Rear I/O board for CPC501: 2xGigabit Ethernet,VGA, AUDIO, 4xCOM, 2xUSB, PS/2, reset, LPT, FDD, EIDE, RTC battery -40..85'C

  • RIO58601-C

    6U 8HP Rear I/O board for CPC501 0..70'C

  • RIO58601-I

    6U 8HP Rear I/O board for CPC501 -40..85'C

  • RIO58602-C

    6U 4HP Rear I/O board for CPC501 0..70'C

  • RIO58602-I

    6U 4HP Rear I/O board for CPC501 -40..85'C
