Preliminary CPC516

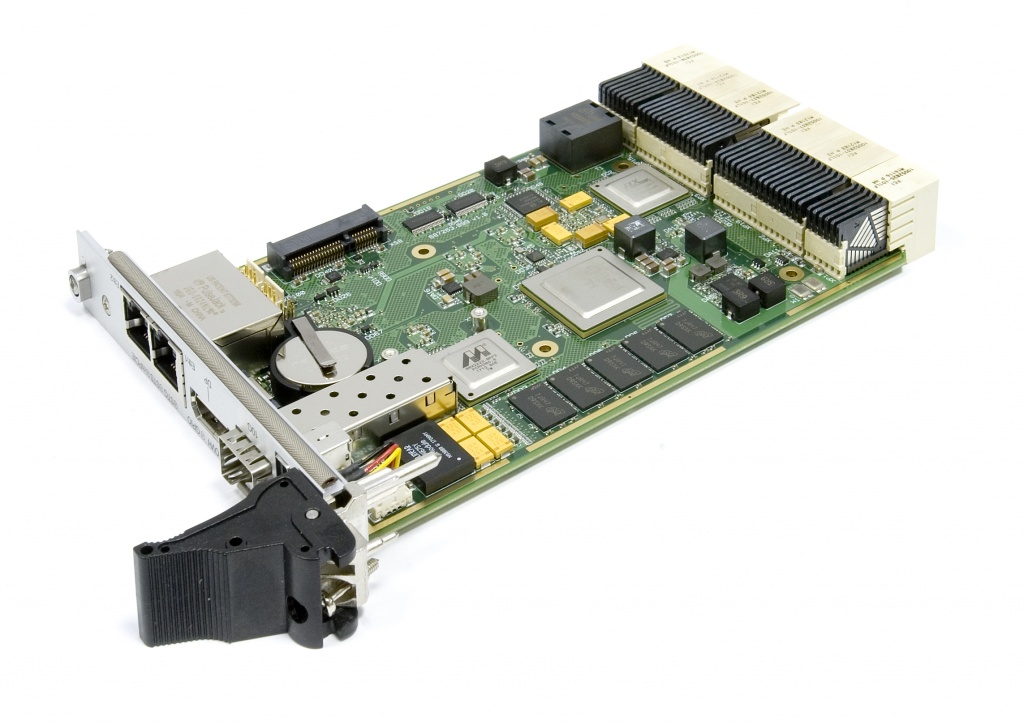

 Preliminary CPC516  3U CompactPCI Serial Baikal-T CPU Module

3U CompactPCI Serial Baikal-T CPU Module

Preliminary CPC516

    • Baikal-T CPU: MIPS32 P5600 core with up to 1.2 GHz
    • DDR3-1600 SDRAM 4 GB, soldered
    • Display Port up to 1920x1080 @ 50 Hz
    • SSD: 8 GB
    • Real-Time Clock with integrated lithium battery 3 V
    • Operating temperature range: from –40 to + 85°C
    • Software compatibility: Linux (Debian 8.x)
    • MTBF: no less than 100 000 h

    Overview

    Downloads

    Order Info

    Sales & technical support

    CPC516 CPU Module is a highly integrated and energy-efficient solution based on the MIPS32 platform for the use in realtime systems, manufacturing control systems and other systems for data acquisition and processing for harsh environments and mission critical applications.
    Datasheet (PDF 0.76 MB)
    CPС516-01

    CPU Module CPC516 (CPCI-S), Baikal-T MIPS32 P5600 1.2 GHz, 4 GB DDR3 SDRAM, 2 х 1 Gbit Ethernet, USB 2.0, Display Port, SSD 8 GB, miniPCIe connector

    CPС516-02

    CPU Module CPC516 (CPCI-S), Baikal-T MIPS32 P5600 1.2 GHz, 4 GB DDR3 SDRAM, 10 Gbit Ethernet, 2 х 1 Gbit Ethernet, USB 2.0, Display Port, SSD 8 GB, miniPCIe connector

    \Coated

    Conformal coating
