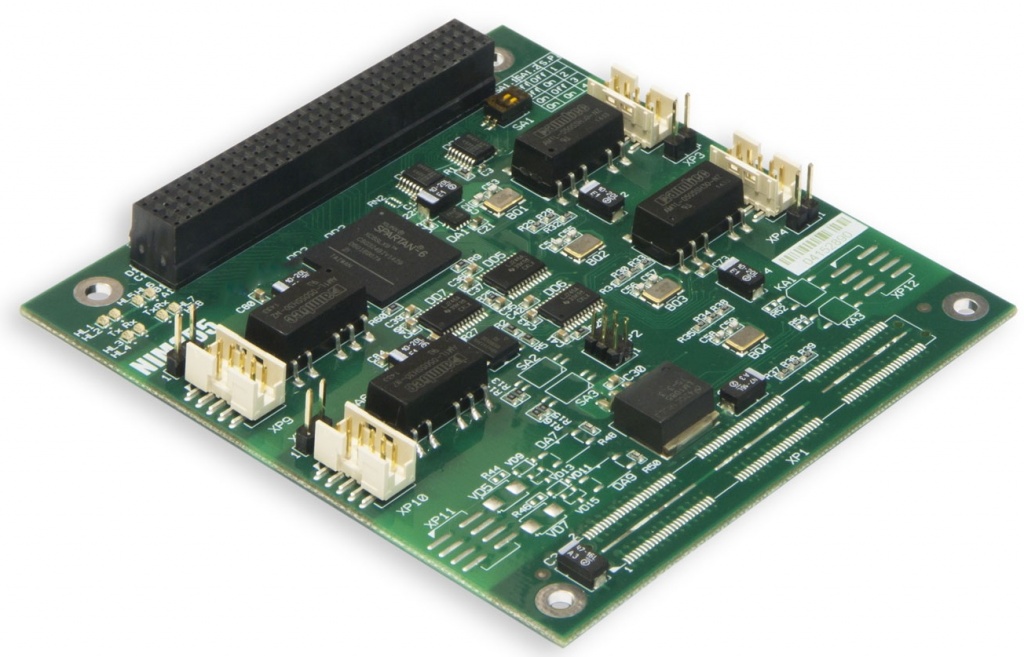

StackPC-PCI Interface Module

NIM355

•    PCI System Bus: 32 bit/33 MHz
•    4×CAN channels, 4×Digital Input Channels,
      4×Digital Output Channels
•    Compatibility with OS: Windows XPe, Linux 2.6.x, QNX 6.5
•    Dimensions: no more than 90,2×95,9×23,5 mm
•    Weight: no more than 120 g.
•    Operating temperature range: –40…+85°С
•    Power supply: power supply voltage of +5 V ± 5%,
      and current consumption: no more than 300 mA
•    MTBF: no less than 170 000 hours

Overview Downloads Order Info Sales & technical support

NIM355 Interface Module is implemented in accordance with the StackPC-PCI standard and is designed for the use in embedded systems with CAN networks and represents a 4-channel CAN-interface module, which makes it possible to additionally connect up to 4 digital I/O lines and 4 digital output lines.

Datasheet (PDF 1.1 MB)

Manuals:

NIM355-01

4×CAN, 4×DI, 4×DO. The module contains a full set of interfaces and functional elements

NIM355-02

4×CAN. Module’s version has no digital input and output, as well as no StackPC connector

Options:

\ COATED

Conformal coating

Cables and connectors

Components for embedded systems design
