Fanless 18.5” Panel PC
PPC-18FN Intel® Atom™ Dual Core D2550
- CPU: Intel® Atom™ Dual Core D2550 (1.86 GHz, 1 MB cache), with HyperThreading support;
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 18.5”, resolution: 1366 х 768 (widescreen, aspect ratio 16:9), with capacitive touchscreen, MultiTouch support, luminance: 300 cd/m², contrast ratio: 1000:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Audio: 2 x channel, Realtek® HD Audio;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 18.5”, resolution: 1366 х 768 (widescreen, aspect ratio 16:9), with capacitive touchscreen, MultiTouch support, luminance: 300 cd/m², contrast ratio: 1000:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Audio: 2 x channel, Realtek® HD Audio;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);
Overview
Downloads
Order Info
Sales & technical support

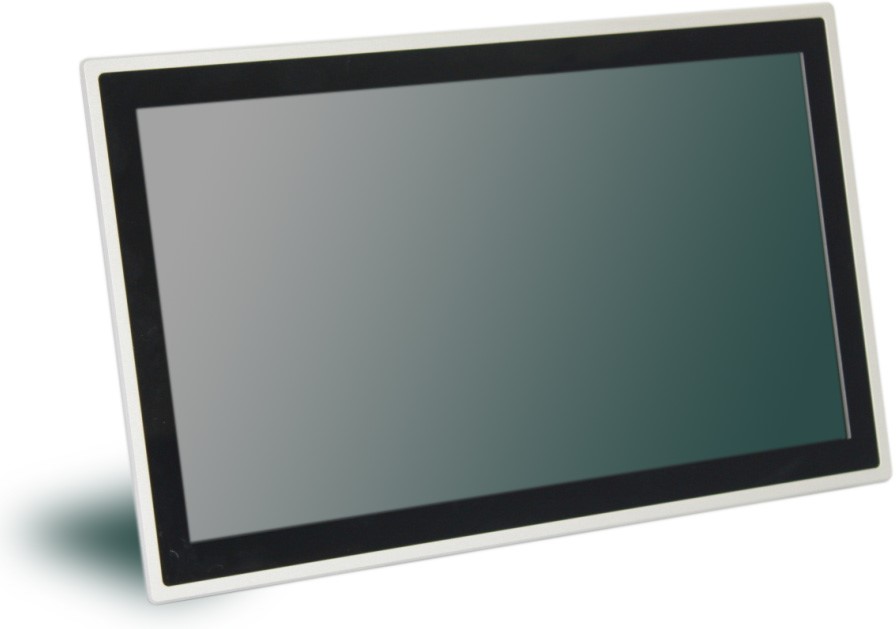

PPC-18FN (Advantix – powered by Fastwel) Intel® Atom™ Dual Core D2550 Fanless LowPower 18.5” Panel PC is equipped with a 18.5” resistive touchscreen with resolution of 1366х768 and is characterized by a stylish industrial design, MultiTouch support and aluminum front panel with IP65 protection.
Datasheet
(PDF 0.96 MB)
PPC-18FN |
18.5” Fanless Panel PC / Atom D2550 1.86GHz / 4GB DDR3 / 500GB HDD; |
PPC-18FN |
18.5” Fanless Panel PC / Atom D2550 1.86GHz / 4GB DDR3 / 120GB SSD; |
96PSA-A65W19P2-2 |
External power supply unit 19V DC, 100-240V, 65W; |
PC-186-ML12 |
3-pin 1.8m power cable; |
