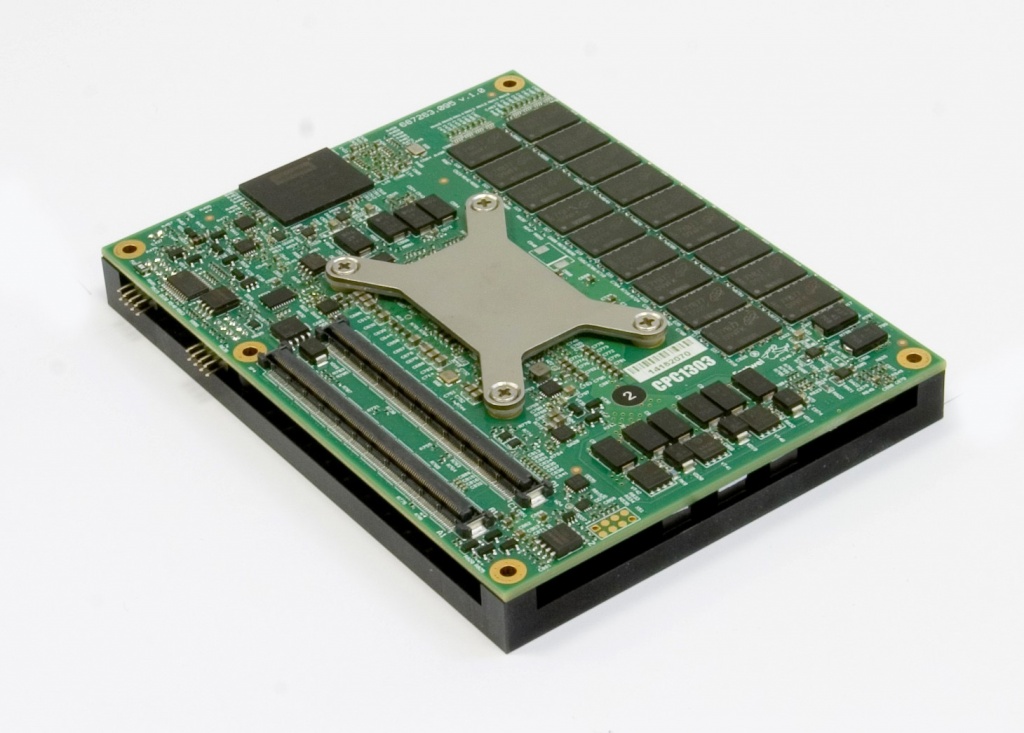

CPU Module in COM Express Basic Format

CPC1303

• CPU Intel Xeon D-1559 1.5 GHz 12C 45 W, D-1539 1.6 GHz 8C 35W,
D-1519 1.5 GHz 4C 25 W
• DDR4-2133 SDRAM up to 32 GB, with ECC support
• 1×PCIe port x16 GEN3, 8 GT/s
• PCIe port x8 GEN3, 8 GT/s
• 7 (8) PCIe ports x1 GEN2, 5 GT/s
• 4×USB 3.0 ports
• 2×USB 2.0 ports
• 2×ports SATA III 6 GbpsF
• Port "LAN 0": Gbit Ethernet Intel 210
• SPI port (External Boot)
• 2×10GbE KR ports
• LPC port (Specification Rev. 1.1)
• SMBus port
• I2C port
• Speaker Out
• 4×GPIO ports
• 2×RS-232 ports (TTL, 128-byte FIFO, up to 3Mbps)

Overview Downloads Order Info Sales & technical support

CPU Module CPC1303, implemented in the standard format COM Express Basic, provides developers of embedded systems with such possibilities as compatibility with the x86 family, modern set of functionalities on the basis of PCI Express 3.0, SATA 3.0, USB 3.0, 10 GbE interfaces, high performance and reliability of Intel Xeon D-1500 CPUs.

Datasheet (PDF 0.74 MB)

CPC1303-01

CPU Module CPC1303, Intel Xeon D-1559 1.5GHz 12 Core, 32GB DDR4 SDRAM, onboard SSD 2x16GB, -40…+60 °C

CPC1303-02

CPU Module CPC1303, Intel Xeon D-1539 1.6GHz 8 Core, 16GB DDR4 SDRAM, onboard SSD 2x16GB, -40…+85 °C

CPC1303-03

CPU Module CPC1303, Intel Pentium D-1519 1.5GHz 4 Core, 8GB DDR4 SDRAM, onboard SSD 2x16GB, -40…+85°C
