ER-MTR7000 Intel Core i7-6600U\ Core i3-6100U  Transportation Fanless Computer

Transportation Fanless Computer

ER-MTR7000 Intel Core i7-6600U\ Core i3-6100U

    - CPU: Intel 6th Gen. Core i7-6600U 2.6 GHz or Intel 6th Gen. Core i3-6100U 2.3 GHz CPUs;
    - RAM: 2 x 4GB DDR4-2133 SO-DIMM (Dual Channel);
    - GPU: integrated, Intel HD graphics Gen. 9;
    - Network: 2x M12 GbE;
    - Power supply: 9V~36V / 72V / 110V DC (as option);
    - Cooling: convection, passive;
    - Operating temperature range: -40°C ~ +60°C (with SSD);
    - OS compatibility: Microsoft Windows 7 (32/64 bit, only Core 6 generation), 10 (64 bit), Linux;

    Overview

    Downloads

    Order Info

    Sales & technical support

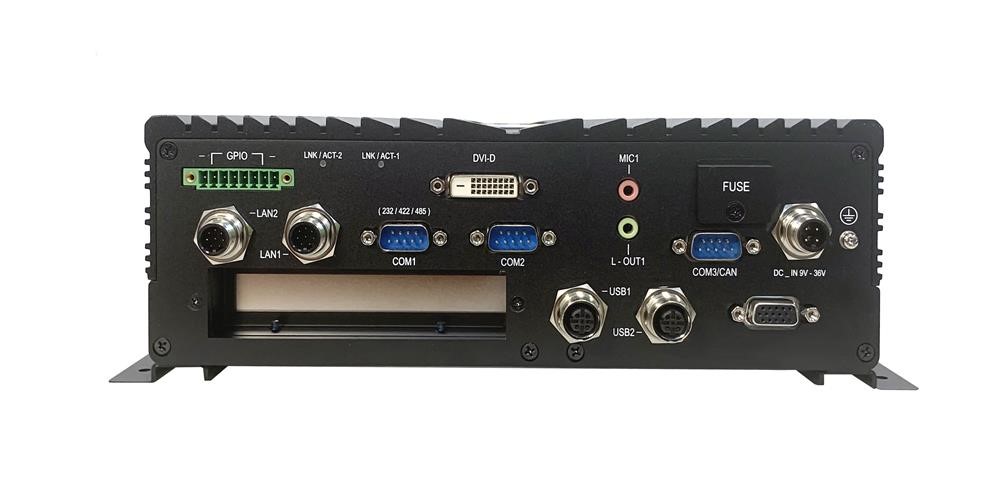

    ER-MTR7000 Fanless Computer (Advantix – powered by Fastwel) is designed for railway application in the 24/7 unmanned mode. The device is characterized by high performance, M12 network ports, wide range of supplying voltage, possibilities for expansion or modification and complies with the EN50155 standard.
    Datasheet (PDF 0.76 MB)
    ER-MTR7000

    Embedded Fanless Computer / Intel Core i7-6600U 2,6 GHz/ 2x4GB DDR4/ 240GB SSD / power supply unit 12V DC, 120 W (for testing);

    ER-MTR7000-XXX

    Custom configuration in accordance with the customer requirements. Delivery time – from 2x weeks (depending on components availability).
