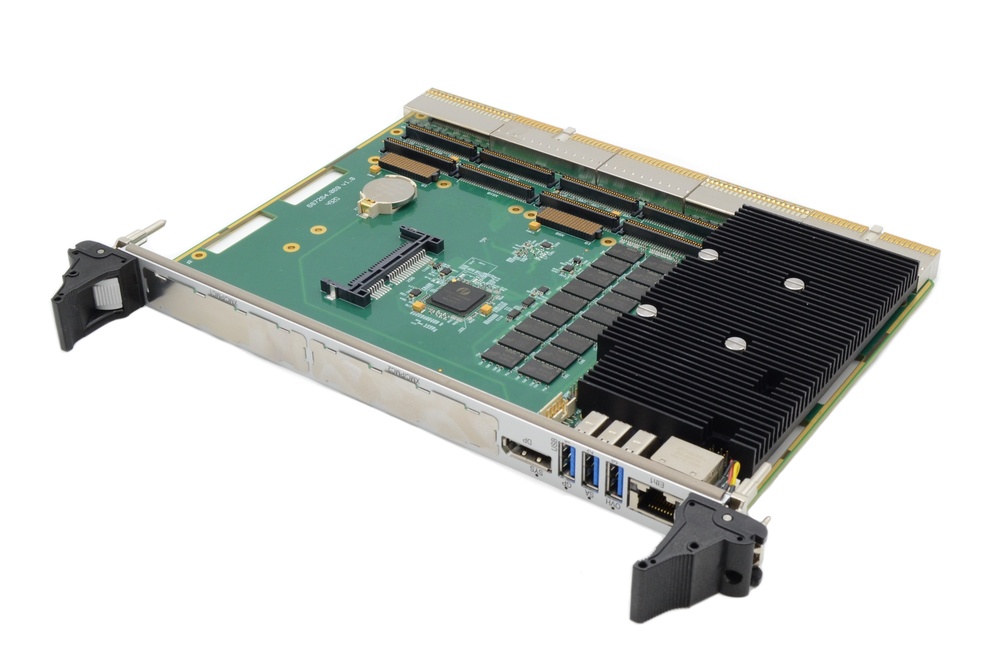

CPC507 SoC AMD FP5 APU Based 6U Compact PCI CPU Module

SoC AMD FP5 APU Based 6U Compact PCI CPU Module

CPC507

    • CPU: AMD Ryzen Embedded V1404I SoC APU
       2.0 GHz 25W;
    • RAM: DDR4-2400 SDRAM up to 16 GB, with
       ECC;
    • Video output: DisplayPort interface (resolution
      of up to 4096x2160 @60 Hz) is routed to the
      front panel;
    • USB ports: support of USB 2.0 (480 Mb/s) and
      USB 3.0 (5 Gb/s);
    • Power supply voltage: +3.3 V; +5 V;
    • Operating temperature range: from -40 to +85 °С;
    • MTBF: no less than 50,000 hours;
    • Software compatibility: Linux Debian 10, Astra
      Linux Special Edition, the “Smolensk” release v1.5,
      Microsoft Windows 10 IoT Enterprise 64bit;

    Overview

    Downloads

    Order Info

    Sales & technical support

    The CPC507 CPU Module implemented in the   6U Compact PCI format and has two platforms for installing the PMC/XMC mezzanines. The applied oC AMD FP5 APU (Ryzen Embedded VSeries) solution together with two mezzanine modules makes it possible to use CPC507 in compact computing systems.
    Datasheet (PDF 0.27 MB)
    UM CPC507.pdf (PDF 1.27 MB)
    CPC507-01

    CPC507 CPU Module, AMD Ryzen Embedded V1404I 25W, 4 x Cores, 16 GB DDR4 SDRAM, -40…+70 °C;

    CPC507-02

    CPC507 CPU Module, AMD Ryzen Embedded V1404I 15W, 4 x Cores, 8 GB DDR4 SDRAM, -40…+85 °C;
