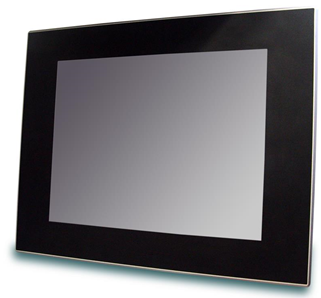

Fanless 12" Panel PC

PPC-12FN Intel® Atom™ Dual Core D2550

PPC-12FN Intel® Atom™ Dual Core D2550 Fanless 12"  Panel PC

- CPU: Intel® Atom™ Dual Core D2550 (1.86 GHz, 1 MB cache), with HyperThreading support;
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 12", resolution 800 х 600, with resistive touchscreen, luminance: 450 cd/m², contrast ratio: 700:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);

PPC-12FN (Advantix – powered by Fastwel) Intel® Atom™ Dual Core D2550 Fanless Panel PC is equipped with 12” screen with resolution of 800х600 and is characterized by a stylish ultrathin industrial design and low power consumption (up to 36W max)
Datasheet (PDF 0.89 MB)
Manuals:
  • PPC-12FN

    12” Fanless Panel PC / Atom D2550 1.86GHz / 2GB DDR3 / 500GB HDD;

  • PPC-12FN-SSD120

    12” Fanless Panel PC / Atom D2550 1.86GHz / 2GB DDR3 / 120GB SSD;

  • 96PSA-A65W19P2-2

    External power supply unit 19V DC, 100-240V, 65W;

  • PC-186-ML12

    3-pin power cable 1,8m.
