High-Performance Fanless 15” Panel PC

PPC-E15 Intel® Core™ i5-4300U

PPC-E15 Intel® Core™ i5-4300U High-Performance Fanless 15”  Panel PC

- CPU: Intel® Core™ i5-4300U (1.9–2.9GHz, 3 MB cache, 2 x cores with HyperThreading support), option: Intel® Core™ i7-4650U (1.7–3.3GHz, 4MB cache, 2 x cores);
- Chipset: Intel® QM87 (sharing the same base with the Haswell CPU);
- RAM: 2 – 16GB, 2 x DDR3L 1333/1600 modules, non ECC, 2-channel;
- Screen: 15” resolution: 1024 х 768, with resistive touchscreen, luminance: 400 cd/m², contrast ratio: 700:1;
- Network: 2 x Ethernet 10/100/1000 Intel® WG1210AT and Intel® WG1218LM controllers;
- Audio: 2-channel, Realtek® HD Audio;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows 7, Windows 8.1, Windows 10, Linux;

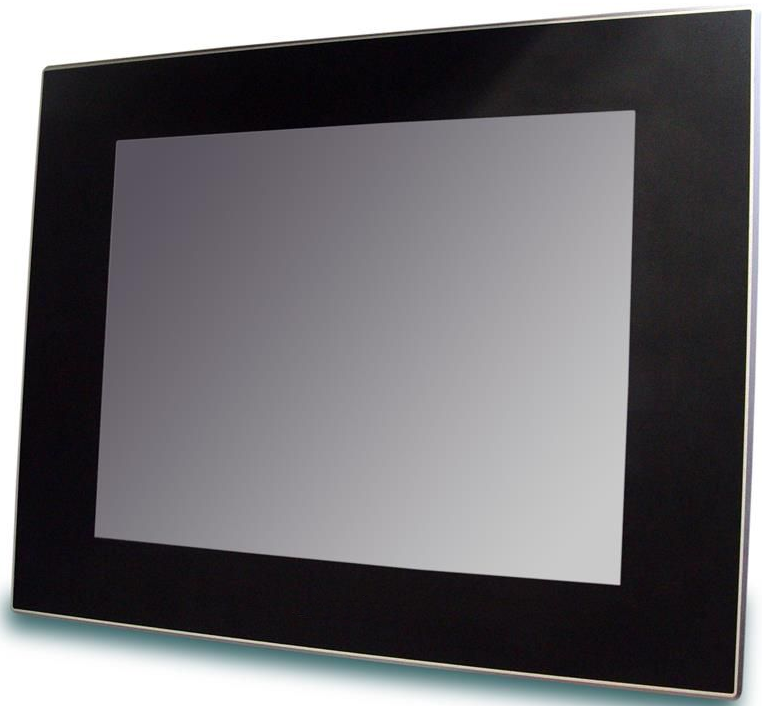

PPC-E15 (Advantix - powered by Fastwel) Intel® Core™ i5-4300U Fanless High-Performance 15” Panel PC is equipped with a 15” resistive touchscreen with resolution of 1024x768 and is characterized by a stylish industrial design and aluminum front panel with IP65 protection.
Datasheet (PDF 0.52 MB)
Manuals:
  • PPC-E15

    15” Fanless Panel PC / Core i5-4300U 1.9GHz / 8GB DDR3 / 120GB SSD / power supply unit / power cable;
