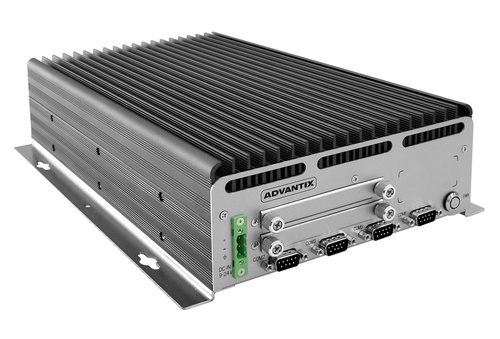

ER-8100 (Advantix - powered by Fastwel) High-Performance Intel® Core™ i7-Embedded Computer

High-Performance Intel® Core™ i7-Embedded Computer

ER-8100 (Advantix - powered by Fastwel)

    • CPUs: Intel® Core™ i7-9700TE, (1.8/3.8GHz, 12MB, 8x cores;
    • Chipset: Intel® Q370;
    • RAM: 4 – 64GB, 2 x DDR4-2400/2666, non ECC;
    • GPU: integrated Intel UHD 630, up to 64GB, res. 4096x2304;
    • Network: 2x Ethernet 10/100/1000 controllers (Intel® I210&I219LM);
    • Operating temperature range: from +5°C to +40°C, or from -30°C to +60°C;
    • Power supply: 12/19..28V DC;
    • OS compatibility: Microsoft Windows 10 (64 bit), Linux

    Overview

    Downloads

    Order Info

    Sales & technical support

    ER-8100 Embedded Computer is a high performance fanless computer equipped with powerful CPUs Intel®Core™i7-9700TE (1.8/3.8GHz, 12MB, 8x cores) or any other Intel Core CPU of the 8th or 9th generation and designed for the flawless functioning in the operating temperature range: from -30°C to +60°C.

    Datasheet (PDF 1.34 MB)
    ER-8100

    Fanless computer / Core i7-8700T 2.4GHz / 16GB DDR4 / 480GB SSD / power supply unit 220V;
    ER-8100-I5

    Fanless computer / Core i5-8500T 2.1GHz / 8GB DDR4 / 240GB SSD / power supply unit 220V;
    ER-8100/WT4

    Fanless computer / Core i7-8700T 2.4GHz / 16GB DDR4 / 480GB SSD / DC power supply, temperature range: from -30 to +60;
    ER-8100-XXX

    Custom configuration in accordance with the customer requirements. Delivery time – from 2x weeks (depending on components availability);
