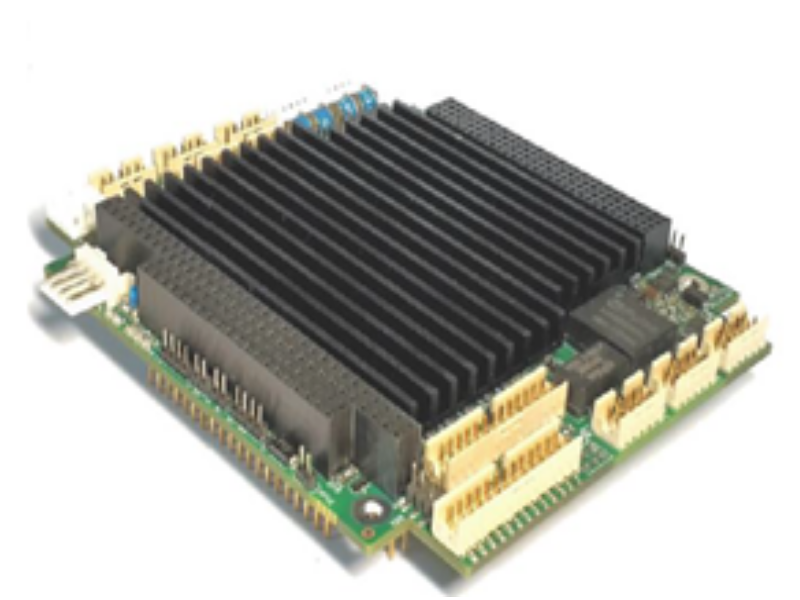

CPC316 PC/104 plus Vortex86DX3 CPU Module

PC/104 plus Vortex86DX3 CPU Module

CPC316

    - CPU: Vortex86DX3™800 MHz, 2 cores;
    - RAM: DDR3 SDRAM 2 GB (soldered onboard);
    - Integrated storage: 8 GB NAND Flash;
    - Power supply voltage from 4.5 to 5.5V;
    - GPU: video controller with 2D accelerator, VGA port
      1920х1080, 32 bit color, LVDS port 1920х1080, 32 bit color;
    - Watchdog: 2 x CPU-integrated watchdogs with actuation
      interval of 30.5 μs…512 s;
    - Operating temperature range: from -40 to +85°C;
    - MTBF: no less than 100,000 hours;
    - OS compatibility: Microsoft™ MS-DOS®6.22, FreeDOS, Linux
      2.6, 3.2, Windows Embedded Standard 7;

    Overview

    Downloads

    Order Info

    Sales & technical support

    The CPC316 is a CPU Module made in PC/104 plus format based on the Vortex86DX3 (800 MHz Dual Core) processor, and features compact size and low power consumption.
    Datasheet (PDF 0.54 MB)
    CPC316-01

    Vortex86DX3 CPU (800 MHz Dual Core); 2 GB RAM; 8 GB flash-drive, Compact Flash; VGA; LVDS; Audio port; 2 х LAN, 2 x RS-232, 2 x RS-422/485, 4 x USB2.0; 48 x DIO; PC/104-plus format

    CPC316-02

    Vortex86DX3 CPU (800 MHz Dual Core); 2 GB RAM; 8 GB flash-drive, Compact Flash; VGA; 2 х LAN, 2 x RS-232, 2 x RS-422/485, 4 x USB2.0; 48 x DIO; PC/104 format
