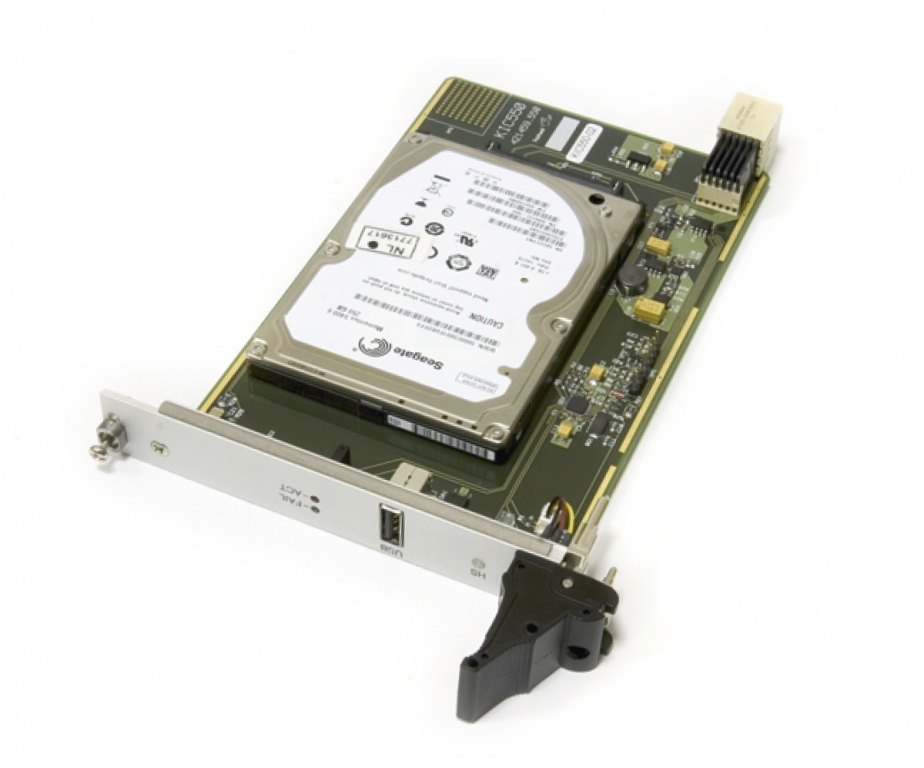

3U CompactPCI Peripheral Storage Module for Connection of 2.5" HDD
KIC550
• Compliance with PICMG 2.30 and PICMG S.0 standards
• Place for mounting a 2.5" disk with SATA interface
• USB 2.0 at the front panel or USB 3.0 via on-board connector
• Operating temperature: –40°C to +85°C (IEC 68-2-14-84)
• Place for mounting a 2.5" disk with SATA interface
• USB 2.0 at the front panel or USB 3.0 via on-board connector
• Operating temperature: –40°C to +85°C (IEC 68-2-14-84)
Overview
Downloads
Order Info
Sales & technical support
KIC550 is a 3U CompactPCI Serial interface expansion module designed to enhance functionality of CPC506 processor module or other processor modules conforming to PICMG 2.30 or Compact PCI Serial specifications. Using this module allows to build full-fledged high-performance reliable computing systems.
Datasheet
(PDF 0.21 MB)
KIC550manual.pdf
(PDF 3.56 MB)
KIC550 – 01 |
KIC550 (–40°C to +85°C) |
Option |
\COATED – damp-proof coating |
