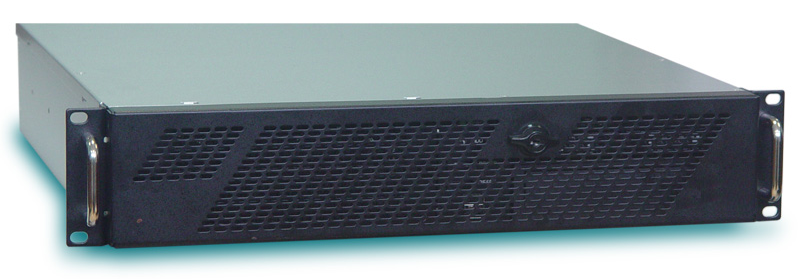

Intel® Xeon® Scalable Compact Failsafe Server

GS-2501-X5 (Advantix - powered by Fastwel)

- CPU: Intel® Xeon® Scalable Processor;
- RAM: 4x DDR4 DIMM – up to 384 GB DDR4-2933MHz RDIMM;
- Chipset: Intel® C621;
- Network: 2 х Ethernet 10/100/1000;
- Video subsystem: integrated ASPEED AST2500 graphics
  controller;
- Power supply: Redundant power supply unit 450W (1+1);
  100-240 V AC, 50-60 Hz;
- Temperature range: +5~+40ºС;
- Dimensions: 460 (D) * 483 (W) * 88 (H);
- OS compatibility: Windows Server 2019 / 2016 / 2012R2;
  Windows 10 / 8.1; Linux (64 bit): RHEL EL 6.8 / 6.9 / 7.3;
  Ubuntu 14.04.2 LTS / 16.10; FreeBSD 10.3; CentOS 7.3; Fedora
  25 / 26

Overview Downloads Order Info Sales & technical support

GS-2501-X5 (Advantix – powered by Fastwel) is a high-performance failsafe server with a special design and a depth of only 460 mm. The server is based on Intel® Xeon® Scalable Processors, which makes it possible to equip the system with up to 384 GB DDR4-2933 MHz RDIMM.
The disk subsystem enables installation of up to 3х 3,5" SATA drives. In order to increase fail safety, a power supply unit with redundant and hot-swappable modules is used. Remote management (IPMI 2.0) over a dedicated Ethernet port is supported.

Datasheet (PDF 0.22 MB)

GS-2501-X5

High-Performance Compact Failsafe Server / Intel® Xeon® Scalable Processor / RAM: 4 x DDR4 DIMM up to 384 GB DDR4-2933 MHz RDIMM / Aspeed AST2500 BMC / Redundant power supply unit 450W (1+1); 100-240 V AC, 50-60 Hz;
