High-Performance Fanless 19” Panel PC

PPC-E19S Intel® Core™ i3-6100U

PPC-E19S Intel® Core™ i3-6100U High-Performance Fanless 19”  Panel PC

- CPU: Intel® Core™ i3-6100U (2.3GHz, 3MB cache, 2 x cores Hyper-Threading), option: Intel® Core™ i5-6300U (2.4–3.0GHz, 3MB cache, Hyper-Threading);
- RAM: 4 – 16GB, 1 x SO-DIMM DDR4 2133 module, non ECC;
- Screen: 19”, resolution: 1280 х 1024, with resistive touchscreen, luminance: 350 cd/m², contrast ratio: 1000:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers (PCIe bus);
- Audio: Realtek® 269Q HD Audio;
- Protection class: IP66, front panel; IP20, rear panel;
- Cooling: convection, passive;
- Power supply: 9-36V DC;
- Temperature range: +5°C ~ +40°C (with SSD), +5°C ~ +50°C (option);
- OS compatibility: Microsoft Windows 7, Windows 8.1, Windows 10, Linux;

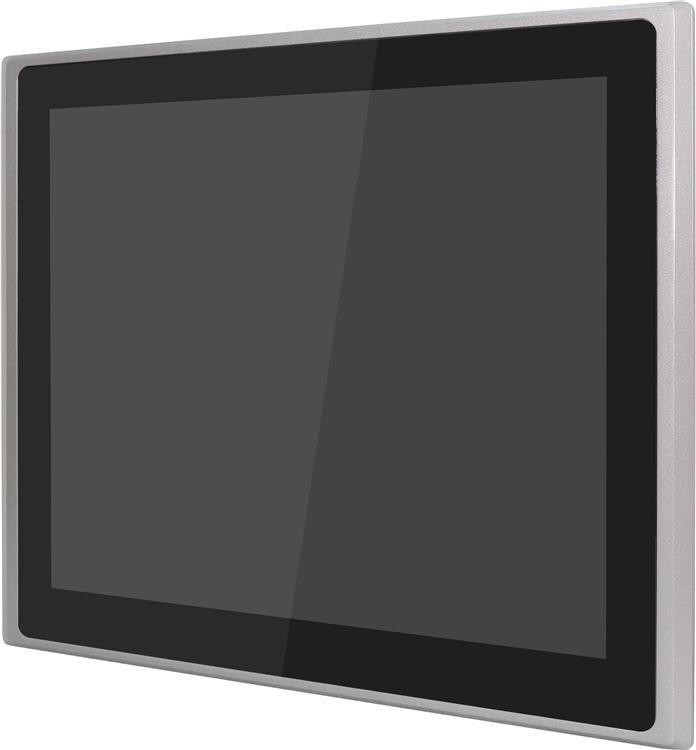

PPC-E19S (Advantix - powered by Fastwel) Intel® Core™ i3-6100U Fanless HighPerformance Panel PC is equipped with a 19” resistive touchscreen with resolution of 1280x1024 and is characterized by a stylish industrial design and aluminum front panel with IP66 protection.
Datasheet (PDF 0.34 MB)
  • PPC-E19S

    19” Fanless Panel PC / Core i3-6100U 2.3GHz / 8GB DDR4 / 240GB SSD / power supply unit / power cable;
