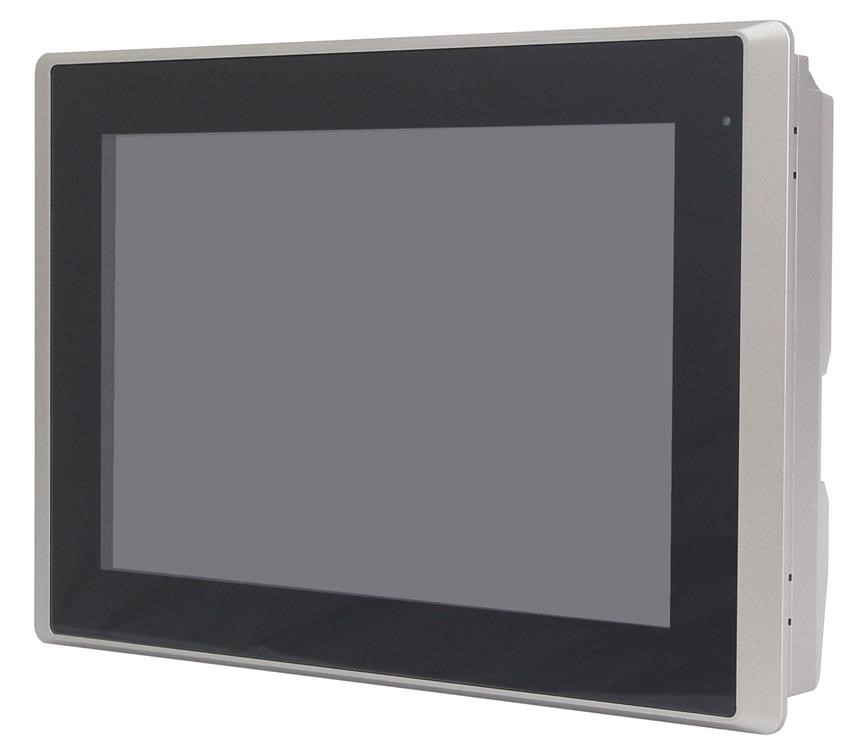

PPC-10FN2 Intel® Pentium® N4200 Fanless 10"  Panel PC

Fanless 10" Panel PC

PPC-10FN2 Intel® Pentium® N4200

    - CPU: Intel® Pentium® N4200 (4 x cores, 1.1GHz/2.5GHz turbo) – by default; Intel® Celeron® N3350 (2 x cores, 1.1GHz/2.4GHz turbo) – option;
    - RAM: 4GB (soldered), up to 8GB in total, via the DDR3L-1666/1866 module, non ECC;
    - Screen: 10", resolution 1280 х 800, with resistive touchscreen (оcapacitive as option), luminance: 300 cd/m² (1000 – as option), contrast ratio: 800:1 (1000:1 for 1000 cd/m²);
    - Cooling: convection, passive;
    - Network: 2 x Ethernet 10/100/1000 Intel® controllers, each on the PCI-E x1 bus;
    - Power supply: 9-36V DC, 1 x 2-pin connector for remote activation/deactivation;
    - Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
    - OS compatibility: Microsoft Windows 10, Linux;

    Overview

    Downloads

    Order Info

    Sales & technical support

    PPC-10FN2 (Advantix – powered by Fastwel) Intel® Pentium® N4200 Fanless Panel PC is equipped with 10” screen with resolution of 1280х800 and is characterized by a stylish thin industrial design and low power consumption.
    Datasheet (PDF 0.64 MB)
    PPC-10FN2

    Fanless 10" Panel PC with LCD/Resistive Touch / Pentium N4200 (1.1 GHz) / 4GB / 120GB SSD/ 2xLAN / 2xCOM / 2xUSB / power supply unit, +5...+40;

    PPC-10FN2-xxx / PPC-XXXXXXXX

    Fanless Panel PC in custom configuration.
