Large Capacity High Density Failsafe Data Storage System
DS-4036-A4 (Advantix - powered by Fastwel)
- CPU: Intel® Xeon® E5-2600V4;
- RAM: Up to 64 GB DDR4 ECC RDIMM;
- Operating temperature range: +5°C ~ +40°C;
- Power supply: Redundant PSU 1200 W (1+1), 80+ Platinum;
Maximum disk space volume: up to 504 TB (with the use of 14
TB drives);
- Maximum number of drives: Up to 36 x drives 3.5” (12 Gb/s
SAS/SATA; 7200 rev. per minute);
- Weight: 60 kg (max);
- Dimensions: 679 (L) х 483 (W) х 176 (H);
- OS compatibility: in the preinstalled form to SATADOM: RAIDIX,
Windows Storage Server, Astra Linux / Astra Linux Special
Edition;
- RAM: Up to 64 GB DDR4 ECC RDIMM;
- Operating temperature range: +5°C ~ +40°C;
- Power supply: Redundant PSU 1200 W (1+1), 80+ Platinum;
Maximum disk space volume: up to 504 TB (with the use of 14
TB drives);
- Maximum number of drives: Up to 36 x drives 3.5” (12 Gb/s
SAS/SATA; 7200 rev. per minute);
- Weight: 60 kg (max);
- Dimensions: 679 (L) х 483 (W) х 176 (H);
- OS compatibility: in the preinstalled form to SATADOM: RAIDIX,
Windows Storage Server, Astra Linux / Astra Linux Special
Edition;
Overview
Downloads
Order Info
Sales & technical support

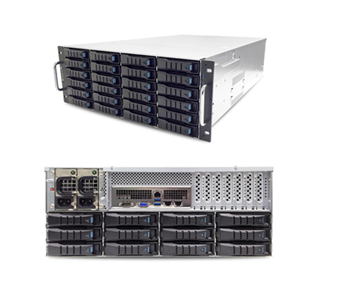

DS-4036-A4 (Advantix – powered by Fastwel) is a large capacity high density failsafe data storage system designed for the use as a network attached storage (NAS) or cost-efficient storage area networks (SAN). The system’s outstanding feature is its additional bay from the rear, which makes it possible to install up to 36 x 3.5” drives and reach a total volume of 504 TB in the 4U form-factor. The standard connection interface – two Gigabit Ethernet ports. Additionally - 10 / 40 Gb/s Ethernet, 16 Gb/s Fiber Channel, as well as 12 GB/s SAS.
Datasheet
(PDF 0.28 MB)
DS-4036-A4 |
Large Capacity High Density Failsafe Data Storage System / Intel® Xeon® E5-2600V4 / Up to 64 GB DDR4 ECC RDIMM / Up to 36 x 3.5” drives / Redundant PSU 1200 W (1+1), 80+ Platinum |
