3.5" Highly Integrated SBC

CPB905

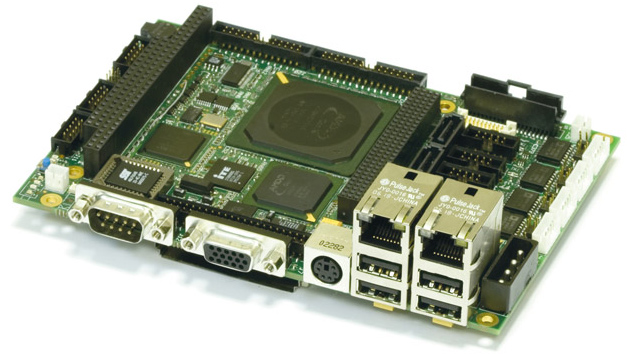

CPB905  3.5" Highly Integrated SBC

•    AMD Geode LX 800 (500 MHz)
•    256 MB DDR SDRAM
•    256 MB Flash disk
•    CompactFlash Type I/II socket
•    USB 2.0 support, up to four devices connection
•    Two Ethernet controllers
•    HDD connection: up to two devices
•    FBUS devices connection port
•    Seven COM ports
•    Low power consumption
•    Shock/vibration: 50G/5G
•    Operating temperature range: –40°C to +85°C

СPB905 is a 3,5" single board computer based on AMD LX800 (500 MHz) CPU with PC/104 support (32-bit PCI and 16-bit ISA).

All components, including CPU and memory are soldered onboard thus providing high vibration resistance up to 50G/5G.

CPB905 has a rich set of interfaces: 2 Fast Ethernet ports, 7 COM ports (4 optoisolated), 4 USB 2.0 ports, supports video output on monitors with CRT, TFT, LVDS interfaces with resolution up to 1920×1440 pixels.

Power consumption of СPB905 module is just 6W, which makes it a perfect solution for systems with passive cooling.

СPB905 operates in industrial temperature (-40...+85°С) and supports Linux, Windows XP Embedded/CE, QNX.
Datasheet (PDF 0.6 MB)
Manuals:
  • CPB905-01

    SBC 3.5" AMD Geode LX800, 500MHz, RAM256 MB, PCI, ISA, 2xEthernet, CRT, LVDS, 8 COM ports COM5-COM8 (RS232/485/422), -40..+85C
