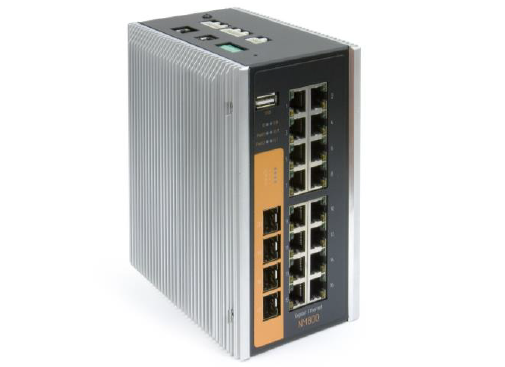

Industrial Gigabit PoE Network Managed Switch

NM800

NM800

- Ext. interfaces:10/100/1000Base-T–16x ports,10Gbps
  SFP+;
- Network standards: IEEE 802.3, 802.3i, 802.3u, 802.3z,
  802.3ab;
- Support of QoS mechanisms;
- Port Mirroring support;
- Power supply: DC source with a voltage ranging from
  18V to 57V;
- Power consumption: no more than 50 W (exclusively of
  external consumers and PoE consumers);
- Mounting: DIN-rail mounting, wall mounting;
- Operating temperature range: from - 40° C to + 55° C;
- MTBF: No less than 100,000 hours;

The NM800 Industrial Gigabit PoE Network Managed Switch is designed for integration into industrial networks for various purposes and provides a total bandwidth of up to 80Gb. Ample configuration capabilities of the switch make it possible for you to solve a wide range of tasks: from connecting 1 GbE video cameras with PoE support to aggregating communication lines and using an optical channel up to 10 GbE.
Datasheet (PDF 0.2 MB)
Manuals:
  • NM800-01 (20 ports)

    4 x SFP+ ports 10 Gbps, 16x ports 10/100/1000 Base-T + 8 PoE

  • NM800-02 (12 ports)

    4 x SFP+ ports 10 Gbps. 8x ports 10/100/1000Base-T + PoE

  • NM800-03 (10 ports)

    4 x SFP+ ports 1 Gbps, 8 x ports 10/100/1000Base-T.
