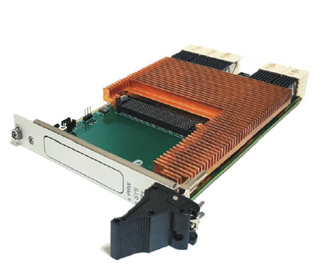

FPU502 Preliminary 3U CompactPCI Serial Reconfigurable Computing Module Based on FPGA of the Kintex UltraScale family

3U CompactPCI Serial Reconfigurable Computing Module Based on FPGA of the Kintex UltraScale family

FPU502 Preliminary

    • FPGA Xilinx Kintex UltraScale;
    • Synchronous RAM: two independent memory banks 4 GB DDR4 each;
    • 1 GB NOR SPI FLASH for this user;
    • Connector for installation of FPGA Mezzannine Card;
    • System controller: Xilinx inc. CPLD CoolRunner-II;
    • Battery for IP Encryption Key;
    • Operating temperature range: From –40 to +80°С;
    • Humidity: up to 93%, no condensation;
    • up to 98%, no condensation - for /Coated option;
    • Golden Image;
    • MultiBoot;
    • Load/recovery algorithm programmable by the user;
    • Changing bitstream via PCIe bus.

    Overview

    Downloads

    Order Info

    Sales & technical support

    FPU502 Module is designed for building high-performance industrial SDR-systems based on the CompactPCI Serial platform with parallel digital real-time data processing.

    Main areas of application are:
    ▪ data coding/decoding;
    ▪ digital signal processing;
    ▪ stream-oriented processing of audio and video information;
    ▪ analysis of broad-band signals and correlation detection;
    ▪ synthesis and processing of complex and signal-code sequences.
    Datasheet (PDF 0.58 MB)
    FPU502-01

    Module for operation in the industrial temperature range

    FPU502RC-01

    Module with conduction cooling
