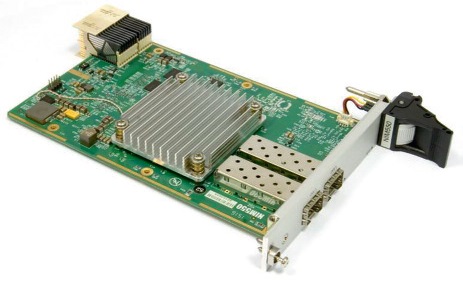

3U CompactPCI Serial Interface Module
NIM550
- Form-factor: CPCI-S.0 3U/4HP with forced air cooling
- System bus: PCI-E x8/x4 Gen2 (up to 5 GT/s)
- Power supply: 12V ±10%
- Power consumption – no more than 18.4 W
- Operating temperature range: Commercial version:
- from 0 to +70°C, industrial version: from –40 to +85°C
- Software compatibility: Astra Linux Special Edition 1.4 (64 bit),
- Linux Debian 8 (64 bit)
- MTBF: no less than 300 000 h
Overview
Downloads
Order Info
Sales & technical support
NIM550 is a network Ethernet-controller with two independent 10 GbE interfaces, implemented as SFP+ ports and routed to the front panel.
The Module is designed for the use in embedded systems with CANs and RS485/422 interfaces.
The Module is designed for the use in embedded systems with CANs and RS485/422 interfaces.
Datasheet
(PDF 0.79 MB)
NIM550 - 01 |
Commercial version: operating temperature range: from 0 to + 70 °С |
NIM550 - 02 |
Industrial version: operating temperature range: from -40 to + 85 °С |
