Fanless Ultrathin 15” Panel PC
PPC-15FN Intel® Atom™ Dual Core D2550
- CPU: Intel® Atom™ Dual Core D2550 (1.86 GHz, 1 MB), with Hyper-Threading support;
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 15”, resolution: 1024 х 768, with resistive touchscreen, luminance: 400 cd/m², contrast ratio: 700:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Cooling: convection, passive;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 15”, resolution: 1024 х 768, with resistive touchscreen, luminance: 400 cd/m², contrast ratio: 700:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Cooling: convection, passive;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);
Overview
Downloads
Order Info
Sales & technical support

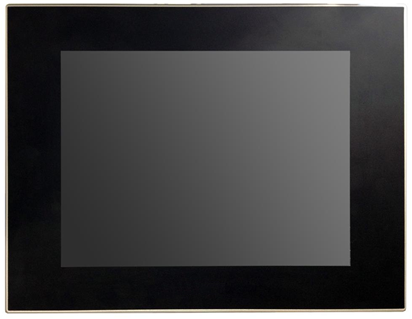

PPC-15FN (Advantix – powered by Fastwel) Intel® Atom™ Dual Core D2550 Fanless Panel PC is equipped with 15” screen with resolution of 1024х768 and is characterized by a stylish ultrathin industrial design and low power consumption (up to 40W max).
Datasheet
(PDF 0.82 MB)
PPC-15FN |
Fanless Panel PC 15” / Atom D2550 1.86GHz / 2GB DDR3 / 500GB HDD; |
PPC-15FN-SSD120 |
Fanless Panel PC 15” / Atom D2550 1.86GHz / 2GB DDR3 / 120GB SSD |
PPC-15RMKIT |
Kit for mounting to the 19” rack, with 1 x USB on the front panel; |
96PSA-A65W19P2-2 |
External power supply unit 19V DC, 100-240V, 65W |
PC-186-ML12 |
Power cable, 1.8 m |
