Average Capacity Data Storage System

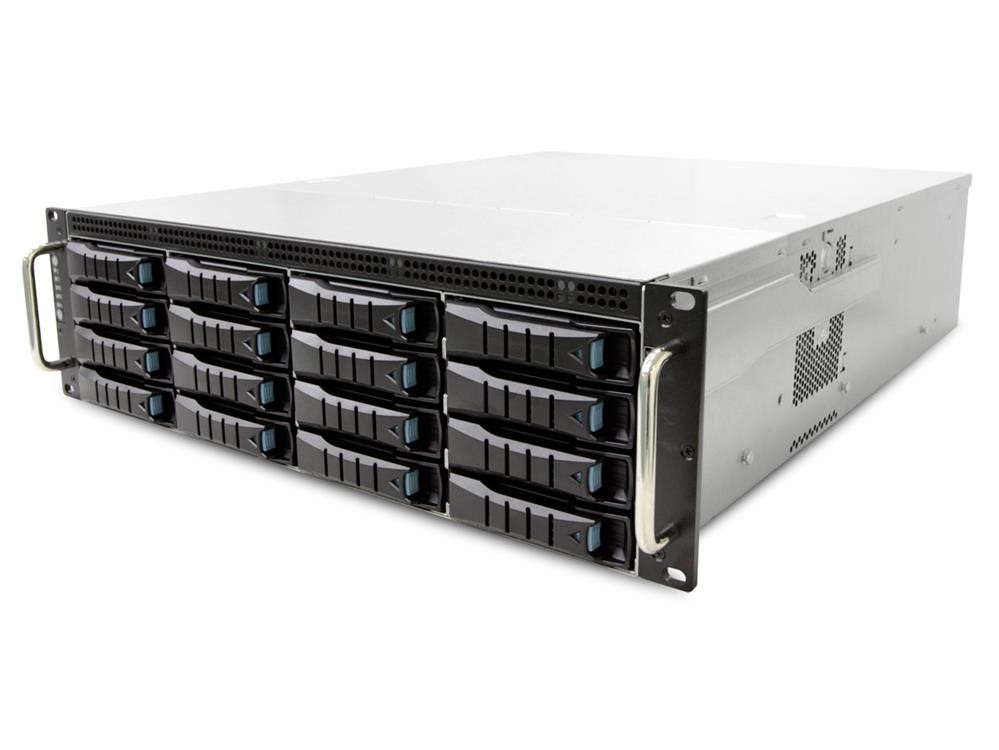

DS-3016-A4 (Advantix - powered by Fastwel)
- CPU: Intel® Xeon® E3-1200V5;
- RAM: Up to 64 GB DD4 ECC;
- Operating temperature range: +5°C ~ +40°C;
- Power supply: 700 W with redundancy (1+1) 80+ Platinum;
- Maximum disk space volume: up to 224 TB (with the use of 14
TB drives);
- Maximum number of drives: Up to 16x 3.5” drives (12 Gb/s
SAS/SATA; 7200 rev. per minute);
- Weight: 45 kg (max);
- Dimensions: 560 (L) х 483 (W) х 132 (H);
- OS compatibility: in the preinstalled form to SATADOM: RAIDIX,
Windows Storage Server, Astra Linux / Astra Linux Special
Edition;
- RAM: Up to 64 GB DD4 ECC;
- Operating temperature range: +5°C ~ +40°C;
- Power supply: 700 W with redundancy (1+1) 80+ Platinum;
- Maximum disk space volume: up to 224 TB (with the use of 14
TB drives);
- Maximum number of drives: Up to 16x 3.5” drives (12 Gb/s
SAS/SATA; 7200 rev. per minute);
- Weight: 45 kg (max);
- Dimensions: 560 (L) х 483 (W) х 132 (H);
- OS compatibility: in the preinstalled form to SATADOM: RAIDIX,
Windows Storage Server, Astra Linux / Astra Linux Special
Edition;
Overview
Downloads
Order Info
Sales & technical support
DS-3016-A4 (Advantix – powered by Fastwel) is an average capacity data storage system designed for the use as a network attached storage (NAS) or costefficient storage area networks (SAN) with connection over iSCSI. The system is distinguished by its short length – 560 mm, which makes it possible to install it into narrow racks (600 mm). The system enables to install up to 16 x 3.5” drives with a total volume of up to 224 TB when using 14 TB drives. The system’s outstanding feature is its short length – 560 mm, which makes it possible to be installed into narrow racks (600mm) and a possibility to install fullheight expansion boards (graphics card, I/O board). This enables to use it in video surveillance solutions. The standard connection interface – two Gigabit Ethernet ports. Additionally - 10 Gb/s Ethernet.
Datasheet
(PDF 0.26 MB)
DS-3016-A4 |
Average Capacity Data Storage System / Intel® Xeon® E3-1200V5 / Up to 64 GB DD4 ECC / Up to 16x 3.5” drives / Redundant PSU 700 W (1+1), 80+ Platinum; |
