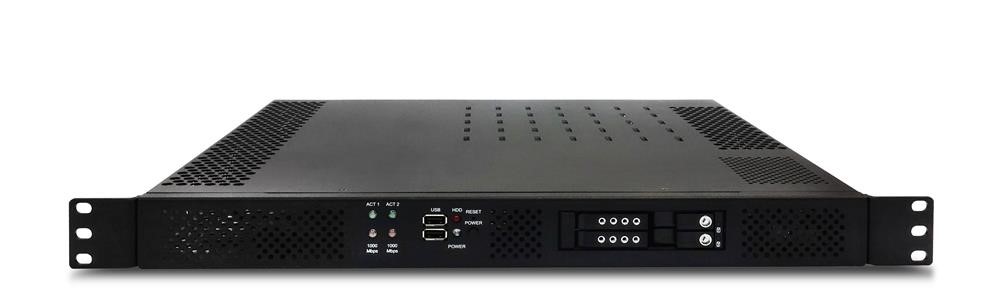

1U Intel® Xeon® D-1541 Compact Fanless Industrial Server

IS-SYS10FN (Advantix - powered by Fastwel)

IS-SYS10FN (Advantix - powered by Fastwel) 1U Intel® Xeon® D-1541 Compact Fanless Industrial Server

- CPU: Intel® Xeon® D-1541 2.10GHz / 2.70GHz;
- Chipset: System on Chip;
- RAM: 4xDDR4 DIMM slots;
- Operating temperature range: +5°C ~ +40°C;
- Network: 3 x RJ45 ports: 2 х Gigabit Ethernet (Intel® i350-
  AM2) and 1 x Mgm LAN;
- Video subsystem: integrated graphics processing unit Aspeed
  AST2400 64MB;
- Power supply: 220 V AC or 9-24V DC (two versions);
- Dimensions: 380 (D) х 440 (W) х 44 (H);
- OS compatibility: Microsoft: Windows Server 2016 / 2012R2 /
  2008R2; Windows 10 / 8.1 / 10; and Linux: Red Hat Linux EL
  7.0/7.1; SUSE SLES 11/12; Ubuntu 14.04.2 LTS; FreeBSD 10.1;
  CentOS 7.0;

The compact high-performance fanless server IS-SYS10FN (Advantix – powered by Fastwel) is characterized by high computing capacity which is ensured by Intel® Xeon® D-1541 8-cores CPUs with Hyperthreading support and has up to 128GB RAM. The disk subsystem has two 2,5” drives with HotSwap. The expansion slots make it possible to install up to 2 x PCI-E Gen 3 additional controllers and M2 PCI-E module, supporting SATA interface, for the operating system.
Datasheet (PDF 0.19 MB)
Manuals:
  • IS-SYS10FN

    High-performance Compact Fanless Industrial Server / Intel® Xeon® D-1541 2.10GHz/2.70GHz / 4 x DDR4 DIMM slots: up to 128 GB DDR4-ECC RDIMM / Integrated GPU Aspeed AST2400 64MB / 220 V AC or 9-24V DC (two versions);
