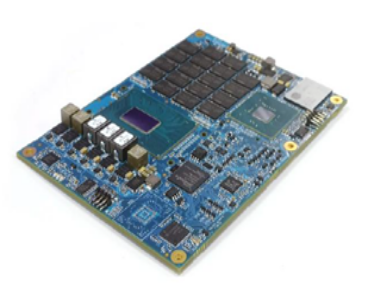

CPC1304 COM Express Basic CPU Module

COM Express Basic CPU Module

CPC1304

    - CPU: Intel Xeon E-2276ME 2.2GHz / XeonE-2254ML 1.7GHz;
    - RAM: DDR4-2666 SDRAM, up to 32 GB, with ECC support;
    - FLASH BIOS: 2х128 Mb SPI-Flash;
    - Real Time Clock (power is supplied from the “RTC battery” port);
    - SATA Solid-State Drive 32 GB iSLC or NVMe PCIe Gen3 x 4 80 GB
      pSLC;
    - Operating temperature range: from - 40° C to +85°;
    - Power supply: +12 V from COM Express, +5 V_STBY from COM
    - Express (option);
    - Module weight with heatsink – max. 0.4 kg;
    - MTBF: min. 100,000 hours.

    Overview

    Downloads

    Order Info

    Sales & technical support

    The CPC1304 CPU Module, designed in the standard COM Express Basic format, provides embedded system developers with such features as compatibility with the x86 family, an up-to-date set of functionalities based on the PCI Express 3.0, SATA 3.0, USB 3.1, DisplayPort 1.2 interfaces, and high performance of Intel Xeon E3 CoffeLake Refresh processors of the latest generation with an integrated graphics core.
    Datasheet (PDF 0.29 MB)
    CPC1304-01

    CPC1304 CPU Module, Intel Xeon E-2276ME 37W, 6x Cores, 32 GB DDR4 SDRAM, onboard nVME 80 GB, -40…+85 °C

    CPC1304-02

    CPC1304 CPU Module, Intel Xeon E-2254ML 25W, 4x Cores, 16 GB DDR4 SDRAM, onboard SSD iSLC 32 GB, -40…+85 °C;

    CPC1304-03

    CPC1304 CPU Module, Intel Xeon E-2276ME 37W, 6 x Cores, 32 GB DDR4 SDRAM, onboard nVME 80 GB, 0…+70 °C;

    CPC1304-04

    CPC1304 CPU Module, Intel Xeon E-2254ML 25W, 4 x Cores, 16 GB DDR4 SDRAM, onboard SSD iSLC 32 GB, 0…+70 °C;
