3U CPCI Serial Intel Xeon D-1559 / Xeon D-1539 / Intel Pentium D-1519 CPU Module

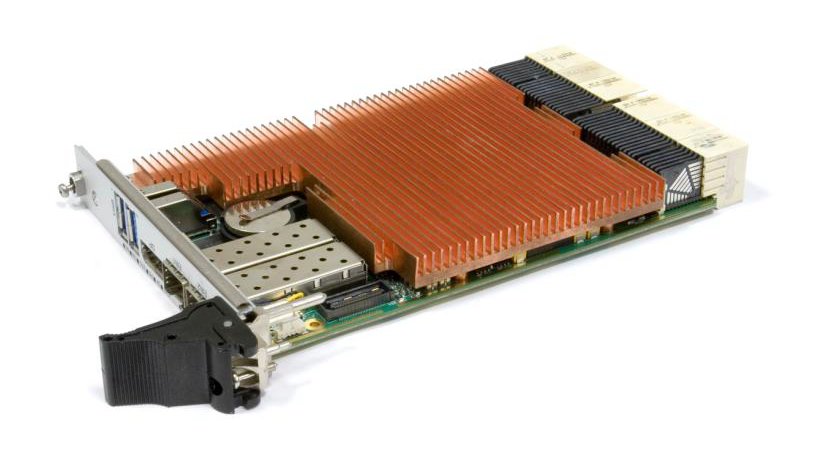

CPC518
- Intel Xeon D-1559 1.5 GHz 45 W, 12 cores, 12 MB cache
- Intel Xeon D-1539 1.6 GHz 35 W, 8 cores, 12 MB cache
- Intel Pentium D-1519 1.6 GHz 35 W, 4 cores, 6 MB cache
- RAM:DDR4-2133 16GB or 32 GB with ЕСС support
- Operating temperature range: from –40 to + 85°C (industrial),
- from 0 to + 70°C (commercial)
- Operating temperature range: from –40 to + 85°C
- Software compatibility: Linux 3.19; QNX 6.x; Microsoft Windows
- Embedded Standard 7; Microsoft Windows Embedded Standard 10
- MTBF: no less than 100 000 h
Overview
Downloads
Order Info
Sales & technical support
CPC518 CPU Module is implemented in 3U Compact PCI Serial format built on a single-chip processor Intel®Xeon® made with the 14-nm technology.
CPC518 is applied mainly in onboard heterogeneous systems operating under severe conditions and requiring multicore х86-compatible computer with a high capacity.
CPC518 is applied mainly in onboard heterogeneous systems operating under severe conditions and requiring multicore х86-compatible computer with a high capacity.
Datasheet
(PDF 0.78 MB)
CPС518-01 |
CPCI Serial 3U/4 HP module, 12-core CPU Xeon D-1559 45 W, 32 GB RAM, SSD 16 GB for operation in the commercial temperature range |
CPС518-02 |
CPCI Serial 3U/8 HP module, with 8-core CPU Xeon D-1539 35 W, 32 GB RAM, SSD 16 GB for operation in the industrial temperature range |
CPС518-03 |
CPCI Serial 3U/8 HP module implemented in the standard Eurocard 3U standard with 8-core CPU Xeon D-1539 35 W; 32 GB RAM, SSD 16 GB for operation in the commercial temperature range |
CPС518-04 |
CPCI Serial 3U/4 HP module, with 8-core CPU Pentium D-1519 25 W, 16 GB RAM, SSD 16 GB for operation in the industrial temperature range |
\Coated |
Conformal coating |
