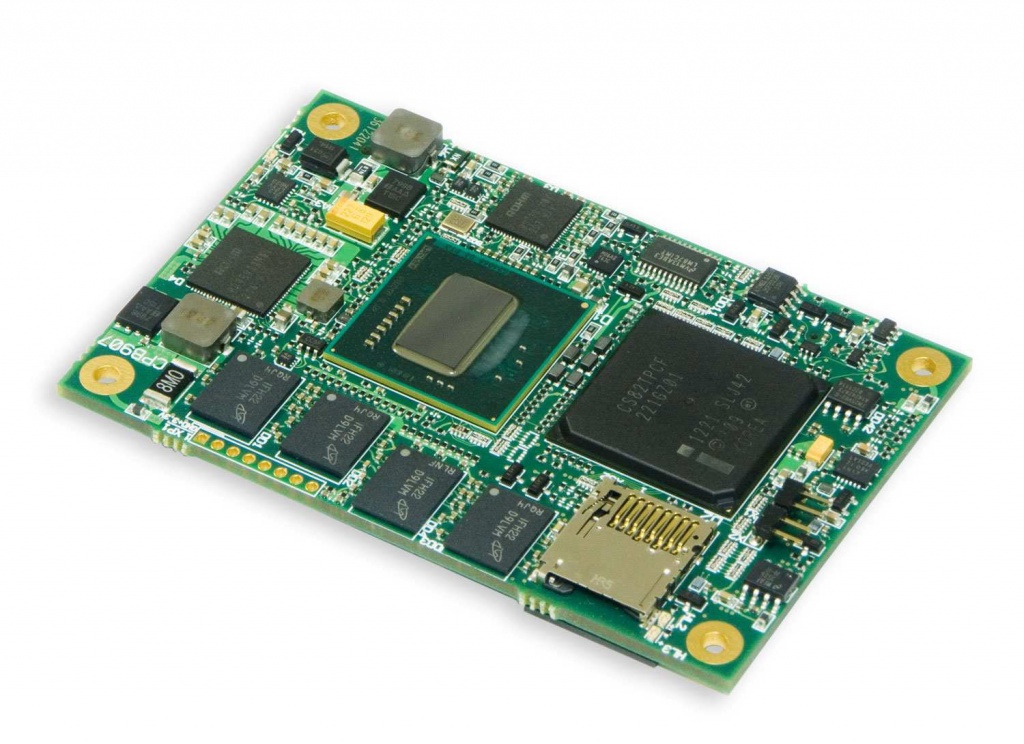

CPB907

Mezzanine CPU Module COM Express® mini, Type 10
CPB907
• Intel Atom E6xxT™ 0.6 / 1.6 GHz CPU
• DDR2-800 SDRAM, 512 / 1024 MB, soldered
• Integrated graphics controller 400 MHz
• 4 GB NAND flash (SLC)
• COM Express® Type 10 connector signals
• OS compatibility: Microsoft™ MS-DOS®6.22, FreeDOS, Linux 2.6, QNX 6.5.x, Microsoft™ Windows® CE 6.0, Microsoft™ Windows® XP Embedded
• Operating temp. range: -40°С … +85°С (IEC 68-2-14-84)
• Shock / vibration stability: 50g / 5g (IEC 68-2-27-87; IEC 68-2-6-82)
• MTBF: 200 000 hours
• DDR2-800 SDRAM, 512 / 1024 MB, soldered
• Integrated graphics controller 400 MHz
• 4 GB NAND flash (SLC)
• COM Express® Type 10 connector signals
• OS compatibility: Microsoft™ MS-DOS®6.22, FreeDOS, Linux 2.6, QNX 6.5.x, Microsoft™ Windows® CE 6.0, Microsoft™ Windows® XP Embedded
• Operating temp. range: -40°С … +85°С (IEC 68-2-14-84)
• Shock / vibration stability: 50g / 5g (IEC 68-2-27-87; IEC 68-2-6-82)
• MTBF: 200 000 hours
Overview
Downloads
Order Info
Sales & technical support
Mezzanine CPU Module COM Express® mini, Type 10, 55 x 84 mm. Designed for building highly-reliable energy-efficient embedded systems with small dimensions.
Conforms to "PICMG® COM.0 COM Express® Module Base Specification Revision 2.1".
Conforms to "PICMG® COM.0 COM Express® Module Base Specification Revision 2.1".
Datasheet
(PDF 0.38 MB)
CPB907___pc___RV_nw.pdf
(PDF 4.66 MB)
CPB907-01-E1.6-RAM1024-SSD4G-I |
CPB907 (COM Express® mini, Type10), Intel E680T 1.6 GHz, 1 GB DDR2 SDRAM, 4 GB SSD, MicroSD socket, FRAM 32 KB, accelerometer, pressure sensor, without heatsink |
CPB907-03-E0.6-RAM1024-I |
CPB907 (COM Express® mini, Type10), Intel E620T 600 MHz, 1024 MB DDR2 SDRAM, MicroSD socket, without heatsink |
CPB907-01-E1.6-RAM1024-SSD4G-I\LNX\COATED |
CPB907 (COM Express® mini, Type10), Intel E680T 1.6 GHz, 1 GB DDR2 SDRAM, 4 GB SSD, MicroSD socket, FRAM 32 KB, accelerometer, pressure sensor, without heatsink, coated, ОС Linux |
KIB1283-02 |
Carrier board |
