Fanless 10" Panel PC
PPC-10FN Intel® Atom™ Dual Core D2550
- CPU: Intel® Atom™ Dual Core D2550 (1.86 GHz, 1 MB), with Hyper-Threading support;
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 10" with resolution up to 800 х 600, with resistive touchscreen, luminance:
cd/m², contrast ratio: 700:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);
- Chipset: Intel® NM10;
- RAM: 1 – 4GB, 1 x DDR3 1066/1333 module, non ECC;
- Screen: 10" with resolution up to 800 х 600, with resistive touchscreen, luminance:
cd/m², contrast ratio: 700:1;
- Network: 2 x Ethernet 10/100/1000 Intel® 82574L controllers, each on the PCI-E x1 bus;
- Power supply: 12-24V DC;
- Operating temperature range: +5°C ~ +50°C (with SSD), +5°C ~ +40°C (with HDD);
- OS compatibility: Microsoft Windows XP Embedded, Windows 7 (32 bit);
Overview
Downloads
Order Info
Sales & technical support

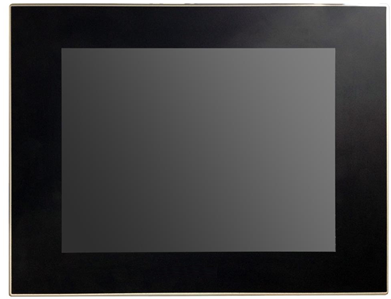

PPC-10FN (Advantix – powered by Fastwel) Intel® Atom™ Dual Core D2550 Fanless Panel PC is equipped with 10” touchscreen with resolution of 800х600 and is characterized by a stylish ultrathin industrial design and low power consumption (up to 34W max).
Datasheet
(PDF 0.83 MB)
PPC-10FN |
10” Fanless Panel PC / Atom D2550 1.86GHz / 2GB DDR3 / 500GB HDD; |
PPC-10FN-SSD120 |
10” Fanelss Panel PC / Atom D2550 1.86GHz / 2GB DDR3 / 120GB SSD; |
PPC-10RMKIT |
Kit for mounting to the 19” rack, with 1 x USB on the front panel; |
96PSA-A65W19P2-2 |
External power supply unit 19V DC, 100-240V, 65W; |
PC-186-ML12 |
Power cable, 1,8m. |
